TK 400G QSFP-DD LR4 CWDM 10KM Optical Transceiver For Telecommunication System

Signal rate per lane : 53.125

Operating Temperature : 0 ~ +70℃

Supply Voltage : 3.14 3.46

Product Name : TK 400G QSFP-DD LR4 CWDM 10KM Optical Transceiver For Telecommunication System

Total Average launch power : 11.1 dBm

Transmitter transition time : 17 ps

Average launch Power per lane : -2.7 、5.1

Warranty : 1 years, lifetime maintenance

Relative Intensity Noise (OMA) : -136 dB/Hz

Transmitter Reflectance : -26 dB

Brand Name : DF/OEM/Nuetral

Model Number : TKQD3140X-3LCD10

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union,T/T,/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Fiber Brand : Corning, YOFC, OFS, Draka

Power Consumption : 12W

Lane Wavelength Range : 1271 1291 1311 1331

Optical Return Loss Tolerance : 15.6 dB

Contact Now

TK 400G QSFP-DD LR4 CWDM 10KM Optical Transceiver For Telecommunication System
TK 400G QSFP-DD LR4 Overview

This 400Gb/s QSFP-DD optical module is designed for 10km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of


CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission.

On the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.


The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. Host FEC is required to support up to 10km fiber transmission.

TK 400G QSFP-DD LR4 CWDM 10KM Optical Transceiver For Telecommunication System

TK 400G QSFP-DD LR4 Applications
  • 400G BASE-LR4 Ethernet
  • Data Center Interconnect
  • Enterprise Networking
TK 400G QSFP-DD LR4 Features
  • Compliant with QSFP-DD MSA
  • Compliant with 100G Lambda MSA 400G-LR4 Specification compliant
  • Compliant with CMIS5.0
  • Compliant with IEEE Std 802.3bs
  • 8x53.125Gb/s electrical interface (400GAUI-8)
  • Cooled EML laser with CWDM wavelength
  • Up to 10km transmission on single mode fiber (SMF) with FEC
  • Single +3.3V power supply
  • Case temperature range: 0 ~ +70℃
  • Maximum power consumption 12W
  • Duplex LC connector
  • RoHS complaint
Operating Conditions
Parameter Symbol Min Max Unit
Case Temperature - Operating TCASE 0 70 ⁰C
Supply Voltage Vcc 3.14 3.46 V
Power Consumption PDISS
12 W
Pre-FEC Bit Error Ratio

2.4x10-4
Link Distance 2
10,000 M
Optical Characteristics
Transmitter Parameters
Parameter Lane Min Typical Max Units
Lane Wavelength Range Lane 0 1264.5 1271 1277.5 nm

Lane 1 1284.5 1291 1297.5 nm

Lane 2 1304.5 1311 1317.5 nm

Lane 3 1324.5 1331 1337.5 nm
Signal rate per lane

53.125
GBd
Average launch Power per lane
-2.7
5.1 dBm
Total Average launch power


11.1 dBm
Outer Optical Modulation Amplitude (OMAouter)
0.3-1.1+TDECQ
4.4 dBm
Difference in launch power between any two lanes (OMAouter)


4 dB
Average Launch Power per Lane @ TX Off State


-16 dBm
Transmitter Eye Closure for PAM4(TECQ), each Lane


3.9 dB
Transmitter and dispersion Eye Closure for PAM4(TDECQ), each Lane


3.9 dB
|TDECQ - TECQ|


2.5 dB
Extinction Ratio
3.5

dB
Relative Intensity Noise (OMA)


-136 dB/Hz
Side-Mode Suppression Ration (SMSR)
30

dB
Optical Return Loss Tolerance


15.6 dB
Transmitter Reflectance


-26 dB
Transmitter over/under-shoot


25 %
Transmitter peak-to-peak power


5.2 dBm
Transmitter transition time


17 ps
Receiver Optical Specifications
Parameter Lane Min Typical Max Units
Lane Wavelength Range Lane 0 1264.5 1271 1277.5 nm

Lane 1 1284.5 1291 1297.5 nm

Lane 2 1304.5 1311 1317.5 nm

Lane 3 1324.5 1331 1337.5 nm
Signal rate per lane

53.125
GBd
Damage Threshold
6.1

dBm
Average Receive Power, each lane
-9
5.1 dBm
Receiver Power, each lane (OMA)


4.4 dBm
Receiver Reflectance


-26 dB
Difference in receive Power between any Two Lanes(OMAouter)


4.3 dBm
Receiver Sensitivity each lane (OMAouter)


-6.8-8.2+TECQ dBm
Stressed Receiver Sensitivity (OMAouter), each


-4.3 dBm
Electrical Characteristics
Parameter Min Typical Max Unit Notes
Signaling rate per lane
26.5625
GBd
AC common-mode output voltage(RMS)
- 17.5 mV
Differential peak-to-peak output voltage

900 mV
Near-end ESMW (Eye symmetry mask width)
0.265
UI
Near-end Eye height, differential 70

mV
Near-end vertical eye closure

7.5 dB
Far-end ESMW (Eye symmetry mask width)
0.20
UI
Far-end Eye height, differential 30

mV
Far-end vertical eye closure

7.5 dB
Far-end pre-cursor ISI ratio -4.5
2.5 %
Common mode to differential conversion return loss 802.3 Equation(83E-3)

dB
Differential output return loss 802.3 Equation(83E-2)

dB
Differential termination mismatch

10 %
Transition time (min, 20% to 80%)
9.5
ps
DC common mode voltage -350
2850 mV
Ordering Information
Part Number Description
TKQD3140X-3LCD10 400G QSFP-DD LR4 Optical Transceiver

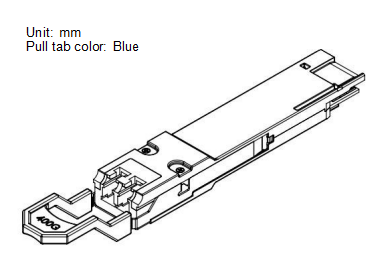

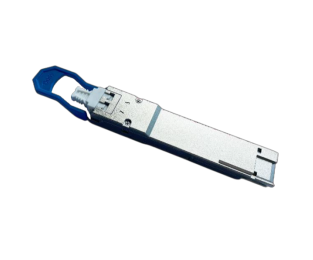

TK 400G QSFP-DD LR4 Images
